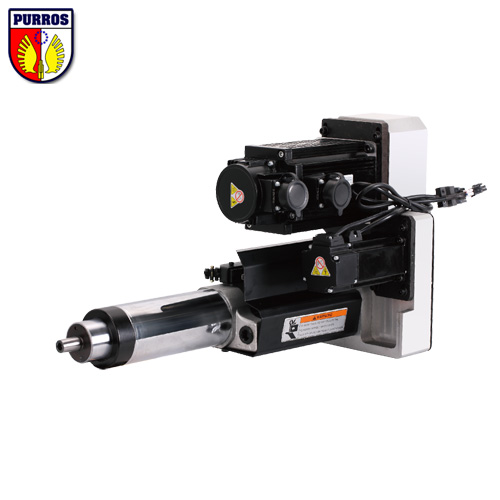

PRST5-S Servo Drilling & Tapping Unit

Category:

Description

A servo drilling & tapping unit for which you can set the feed, depth, pitch and rotation speed freely!
servo drilling & tapping unit have two servo control systems can set the spindle rotation speed, depth, pitch and feed rate freely within the program, ideal for hole drilling or tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling or tapping dramatically improves.

Model: PRST5-S
Rotating speed: 0-5000 rpm
Max. Drilling capacity: Aluminum Φ18, Steel Φ13
Max. Tapping capacity: Aluminum M20, Steel M16
Spindle travel: 100mm
Spindle motor power: 2.2kw
Feed motor power: 0.75kw

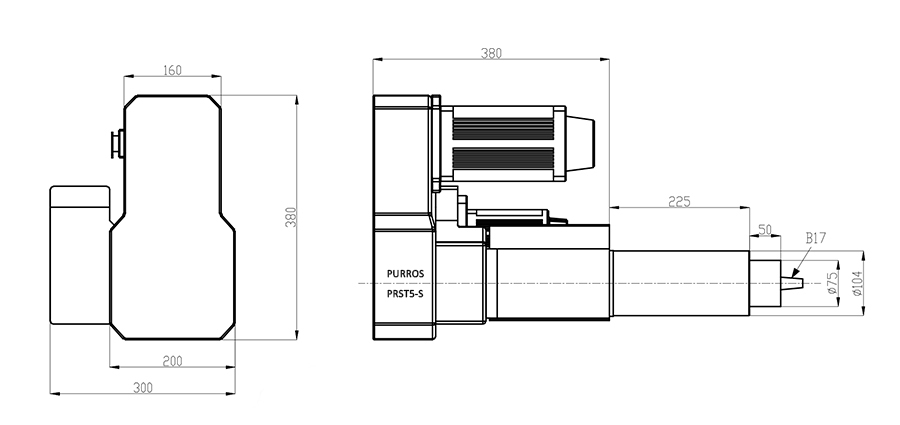

PURROS® Servo Drilling & Tapping Unit Size

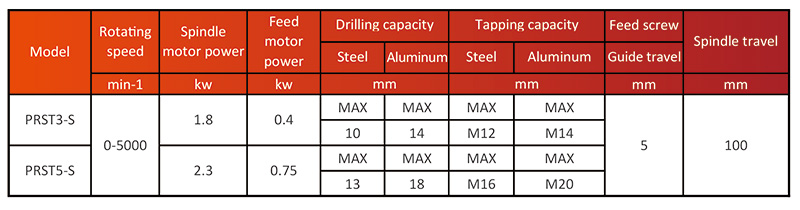

PURROS® Servo Drilling & Tapping Unit Specifications

Products can be equipped with Servo Drilling & Tapping Unit

1. PURROS® Multiple Spindle Heads
Multiple Spindle Heads can be amounted, which can achieve high efficiency drilling and meet different requirements of machining spindle and spindle spacing. Extensive Multiple Spindle Heads sizes are available in PURROS®.

2. PURROS® Unit Installation Stands
Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.



PURROS® Special Purpose Machines

Multiple Drilling or Tapping Machine


Multi Station Drilling or Tapping Machine


Rotary Index Drives Special Purpose Machine


Sliding Table Special Purpose Machine


Rotary Table Special Purpose Machine
