Description
Function and features

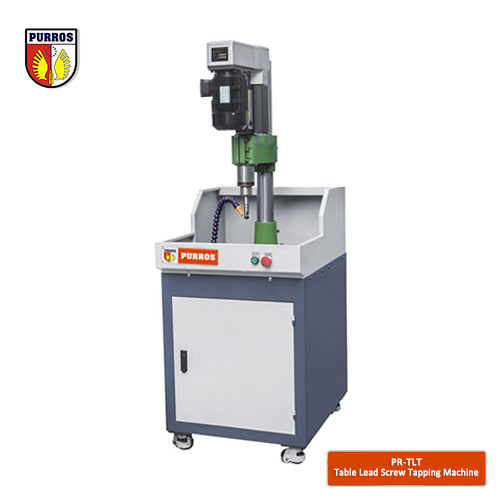

PR-TLT Table Lead Screw Tapping Machine uses the spindle motor to drive the screw rod forward and backward through the belt pulley, To change the speed and pitch of the spindle, it needs to be adjusted by the pulley and gear. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Product Details
| MODEL | PR-TLT3 | PR-TLT5 |
| Machine tool dimension | 600×750×1800mm | 850×1250×2000mm |
| Working table effective size | 230×230mm | 420×620 |
| Column diameter | Φ74mm | Φ104mm |
| Spindle diameter | Φ50mm | Φ70mm |
| Spindle taper | JT6 | B18 |
| Spindle nose to table | 180mm | 220mm |
| Spindle full stroke | 80mm | 80mm |
| Spindle speed | Optional | Optional |
| Spindle Motor power | 0.75Kw | 1.1Kw |
| Tapping capacity | S45C/M12 | S45C/M16 |
| Cooling system | Optional | Optional |
| Fixture system | Optional | Optional |
| Total weight | 180Kg | 300Kg |
For more product information, please visit our YouTube video channel and Download product files.
Our Service
1. Before payment
a. Fastly and professional reply to you about your questions for our special purpose machine.
b. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
c. Free professional design for each customer especially.
d. Welcome to visit our factory.
2. After-Sales Service
We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.
3. Guarantee Period
One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine’s quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer’s factory on seller’s account if problem is serious and can’t be solved by Buyer.
4. Payment Terms
30% as deposit, 70% after the machine is ready before delivery.
5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.
