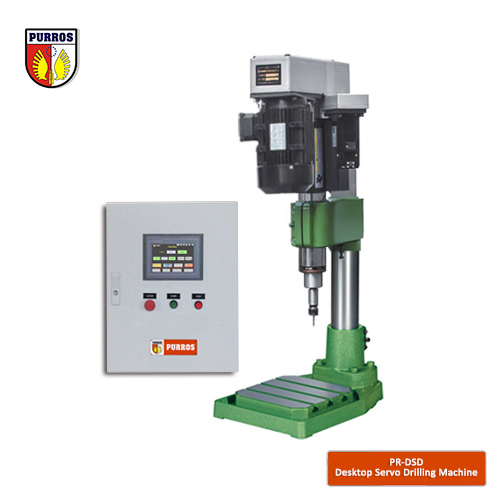

Desktop Servo Drilling Machine PR-DSD


Function and features

PR-DSD Desktop Servo Drilling Machine consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. can set the drilling depth and feed rate freely by touch screen within the program, ideal for small diameter, deep hole drilling, chamfering etc. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.


Product Details

Machine tool dimension 300×450×900mm 300×450×1000mm
Working table effective size 230×230mm 230×230mm
Column diameter Φ74mm Φ104mm
Spindle diameter Φ50mm Φ70mm
Spindle taper JT6 B18
Spindle nose to table 180mm 220mm
Spindle full stroke 100mm 100mm
Spindle speed Optional Optional
Spindle Motor power 0.55Kw 0.75Kw
Feed Motor power 0.4Kw 0.75Kw
Drilling capacity S45C/8.5mm S45C/12mm
Fixture system Optional Optional
Control system PLC PLC
Control panel Touch Screen Touch Screen
Total weight 70Kg 100Kg


For more product information, please visit our YouTube video channel and Download product files.


Our Service

1. Before payment
a. Fastly and professional reply to you about your questions for our special purpose machine.
b. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
c. Free professional design for each customer especially.
d. Welcome to visit our factory.

2. After-Sales Service
We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.

3. Guarantee Period
One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine’s quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer’s factory on seller’s account if problem is serious and can’t be solved by Buyer.

4. Payment Terms
30% as deposit, 70% after the machine is ready before delivery.

5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.
